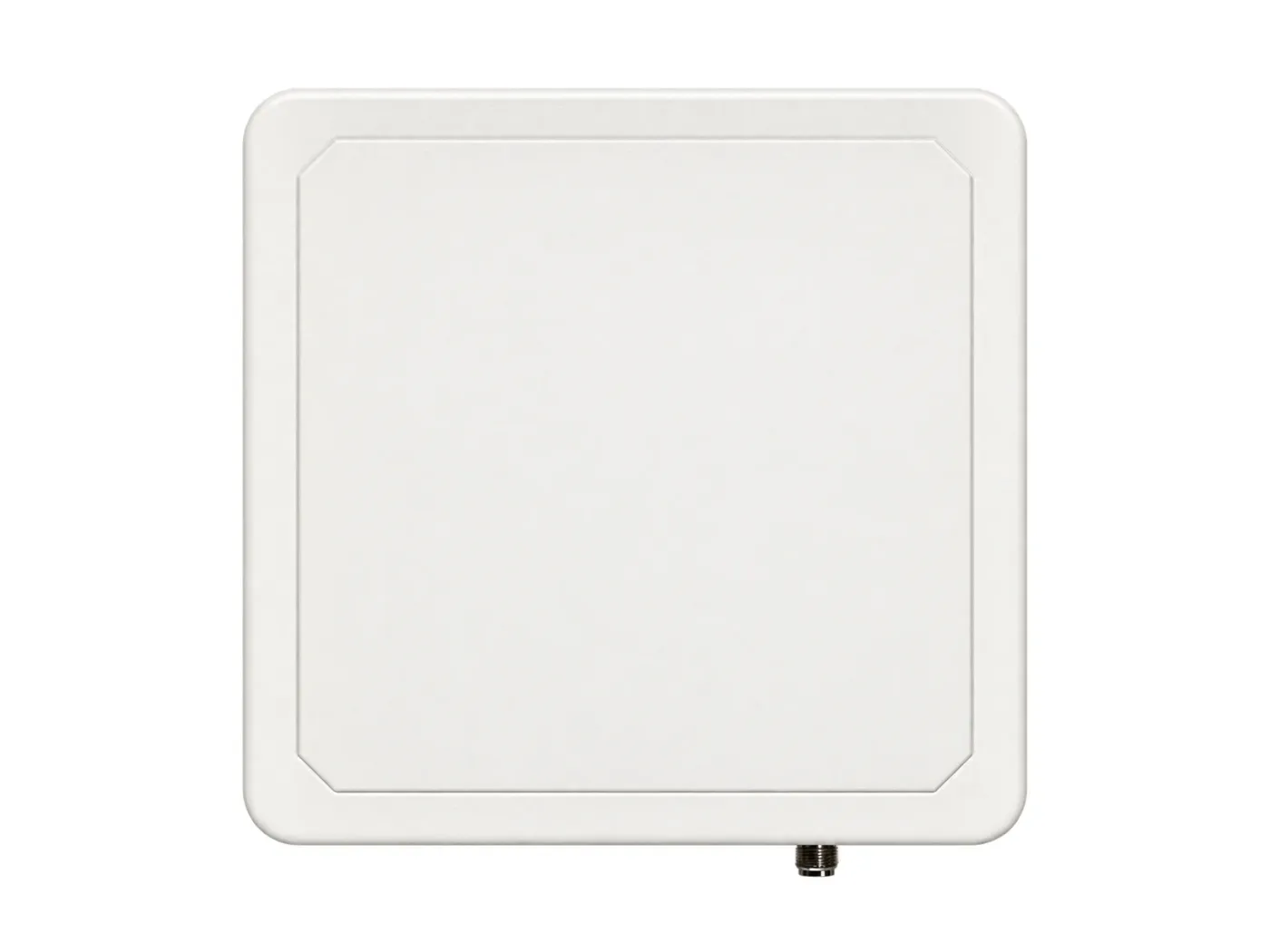

UST-15
UST-15 is a circular polarized, high gain, wide-beam antenna that is suitable for far-field UHF RFID applications such as entrance guard, warehouse management, logistics and retail item management.
Technical information
| Frequency Range | 902 MHz - 928 MHz (Upper) |
|---|---|
| Dimensions | 200mm x 200mm x 32mm |
| Weight | 0.9kg (bracket excluded) |
| Impedance | 50±1 Ω |
| Antenna Gain | >8 dBic |
| Polarization | Circular |
| VSWR | ≤ 1.3:1 |
| Connector Type | RP-TNC Female |
| Material | Aluminum alloy, engineering plastics ASA |
