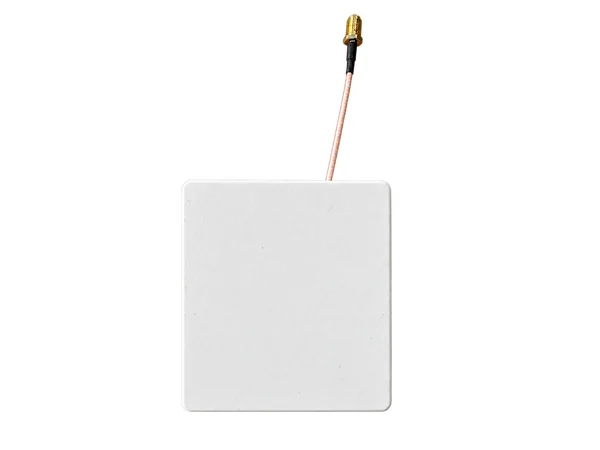

UST-42
UST-42 is a circularly polarized UHF RFID antenna with high gain and a uniform field.
UST-42 AT-A-GLANCE:
- Small size suitable for near-field application (up to 2.5m).
- Widely used in all UHF RFID applications such as textiles, warehousing, logistics, and many more.
- Embedded threaded mounting holes for easy installation.
- Suitable for indoor and sheltered outdoor use. Avoid prolonged exposure to direct sunlight and excessive heat.
Technical information
| Upper | Lower | |
|---|---|---|
| Frequency Range | 902-928 MHz | 865-868 MHz |
| Dimensions | 98 x 87 x 19 mm | |
| Weight | 170 g | |
| Impedance | 50 Ω | |
| Antenna Gain | >4.3 dBic | |
| H side HPBW | 80° | |
| E side HPBW | 80° | |
| Polarization | Circular | |
| Axial Ratio | < 2 dB | |
| VSWR | ≤ 1.3:1 | |
| Connector Type | SMA - Female | |
| Material | PETG, CRS | |
