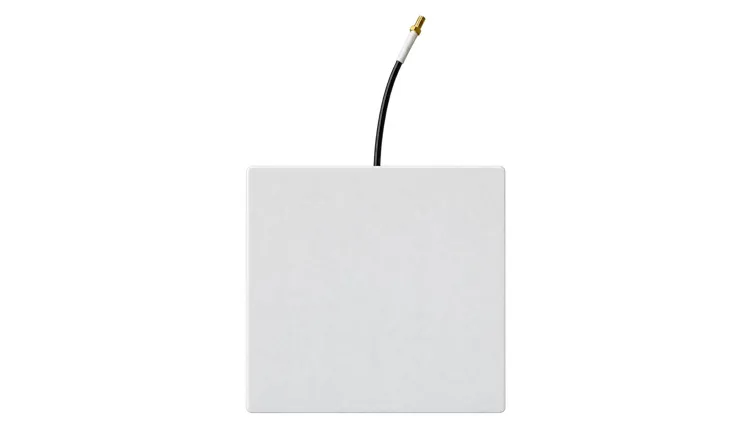

UST-69
UST-69 is a versatile, linearly polarized UHF RFID antenna with high gain for mid-to long-range applications.
UST-69 AT-A-GLANCE:
- Suitable for far-field application (up to 7m).
- Widely used in all UHF RFID applications such as textiles, warehousing, logistics, and many more.
- Embedded threaded mounting holes for easy installation.
- For optimal performance, adjust the antenna angle and polarization to match the orientation of the RFID tags.
- Suitable for indoor and sheltered outdoor use. Avoid prolonged exposure to direct sunlight and excessive heat.
Technical information
| Upper | Lower | |
|---|---|---|
| Frequency Range | 902-928 MHz | 865-868 MHz |
| Dimensions | 229 x 229 x 28 mm | |
| Weight | 1035 g | |
| Impedance | 50 Ω | |
| Antenna Gain | ≥8 dBic | |
| H side HPBW | 70° | |
| E side HPBW | 70° | |
| Polarization | Linear | |
| VSWR | ≤ 1.3:1 | |
| Connector Type | SMA - Female | |
| Material | Aluminum | |
