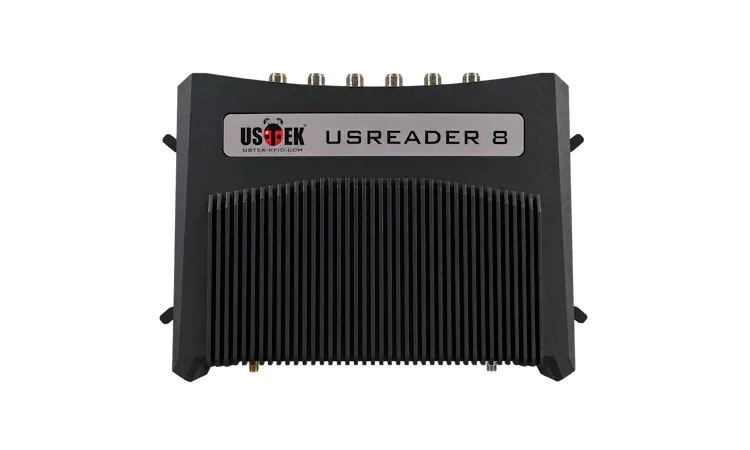

USReader
- USReader can be widely applied in many RFID application systems such as logistics, access control, and industrial production process control systems.
- Supports ISO18000-6C(EPC C1G2) protocol.
- RF output power up to 33dBm(adjustable)
- TNC sockets for 8 external antennae.
- Maximum inventory speed* up to 1000pcs/s
- Support RS232, USB(Slave), RJ45 (TCP/IP), Communication protocol and 2 channel isolated digital input. 2 channel isolated digital output
Technical information
| Dimensions (L x H x W) | 271 x 180 x 28 mm |
|---|---|
| Weight | 1.5 kg |
| Operating Frequency | 865-868 MHz (ETSI Lower), 902 – 928 MHz (ETSI Upper and FCC) |
| Power Supply | 9-24 |
| Current Dissipation | 1.3 A |
| Output Power | 33 dBm (max) |
| Receive Sensitivity | −87 dBm |
